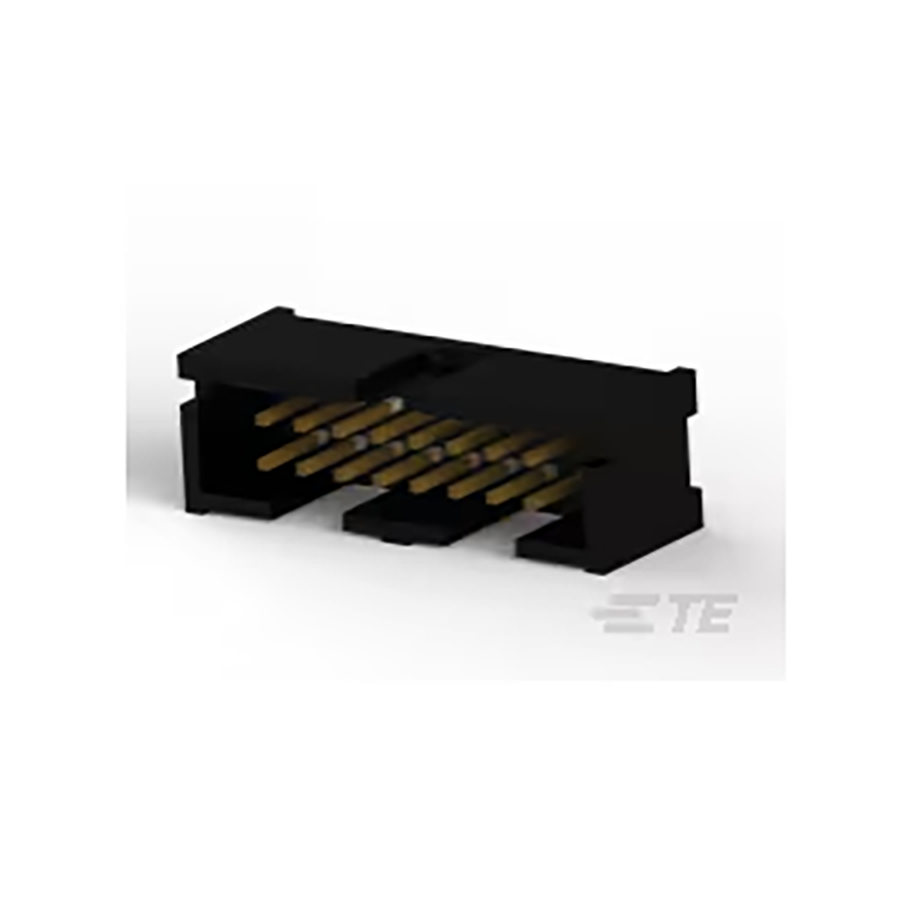

5103310-3
Manufacturer:
TE Connectivity
Mfr.Part #:
5103310-3
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:16 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 27.94 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Height | 8.813 mm |
| Packaging | Tube |
| Depth | 12.31 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin, Gold |
| Lead Length | 3.429 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 16 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Contact Resistance | 12 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 1 A |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
| Contact Gender | Male |
| Mating Post Length | 6.1 mm |
| Contact Shape | Square |
| Shrouded End Dimension | 3.81 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Mating Connector Lock | Without |
| Termination Post Length | 3.43 mm |
| PCB Mount Retention | Without |
Stock: 166
Distributors
pcbx
pcbxUnit Price$1.54571
Ext.Price$1.54571
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.54571 | $1.54571 |
| 10 | $1.53628 | $15.36280 |
| 25 | $1.52690 | $38.17250 |
| 50 | $1.08234 | $54.11700 |
| 100 | $1.02467 | $102.46700 |
| 300 | $0.97007 | $291.02100 |
| 500 | $0.91838 | $459.19000 |
| 1000 | $0.86946 | $869.46000 |
